- Hign-concerned Chemical: None
- Itercom: Yes
- Power: Electric Supply
- Display: Color
- Feature: Photograph,Video
- Connection Type: Wireless
- Alarm: Yes
- Brand Name: Reolink
- Origin: Mainland China
- Item Type: VIDEO DOORBELL
- Certification: CE,FCC,RoHS,weee
- Smart home platform: alexa,Google Assistant
- Video Resolution: 2560X1920 (5mp) @20FPS
- Image Sensor: 1/2.7"
- Lens: f=2.26mm F=2.0, with IR cut
- Field of View: Diagonal: 180°,Horizontal: 134°,Vertical: 97°
- Pre-Motion Recording: Support
- Audio: Two-way audio
- Quick Replies: Support
- Storage: Micro SD card slot (Max. 256GB), works with Reolink NVR
- Ethernet: One 10M/100Mbps RJ45
- WiFi version: 2.4/5GHz WiFi
- PoE version: IEEE 802.3af
- Doorbell button: Yes
- IR-light: 2pcs, 850nm
- function 1: noise reduction, echo suppression
- function 2: Person Detection
- function 3: Pre-Motion Recording
- Power of PoE version: PoE:IEEE 802.3af, 48V Active;Hardwired:12-24VAC 50/60Hz, DC 24V
- Power of WiFi version: Hardwired:12-24VAC 50/60Hz, DC 24V
- Audio Interfaces: Built-in 2 microphones & a speaker
- Input of Chime: AC 100-240 V; 50-60 Hz
- Button of Chime: For setting up/selecting ringtones/adjusting volume
- Number of Selectable Ringtones: 10 ringtones
- Working Environment: Temperature: -20℃~50℃; Humidity: <85%
- Size of Doorbell: 133mm(H) x 48mm(W) x 23mm(T)
- Material of Chime: ABS+PC
- Weight: 96g
Attention:
|
Reolink-Chime-Specifications |
|||||
|
Picture |
|
|
|
|
|
|
Model |
Reolink Chime |
US Version |
EU Version |
UK Version |
AU Version |
|
Physical |
Material |
ABS+PC |
|||
|
Dimensions |
86.5 x 29 x 45.2 mm |
86.5 x 29 x 66 mm |
86.5 x 29 x 52 mm |
86.5 x 30.6 x 47.6 mm |
|
|
General |
Input |
AC 100-240 V; 50-60 Hz |
|||
|
Button |
For setting up/selecting ringtones/adjusting volumeTransmission Mode |
||||
|
Modulation Mode |
FSK |
||||
|
Frenquency |
915MHz |
868MHz |
868MHz |
915MHz |
|
|
Volume |
5 levels |
||||
|
Number of Selectable Ringtones |
10 ringtones |
||||
|
Working Environment |
Temperature: -20℃~50℃; Humidity: <85% |
||||
|
Warranty |
Limited Warranty |
2-year limited warranty |
|||
|
Comparison of Video Doorbell |
|||
|
Picture |
|
|
|
|
Model |
WiFi Video Doorbell |
PoE Video Doorbell |
|
|
Video & Audio |
Image Sensor |
1/2.7" CMOSSensor |
|
|
Video Resolution |
Default: 2560X1920 (5 megapixels) @20FPS |
||
|
Lens |
f=2.26mm F=2.0, with IR cut |
||
|
Video Format |
H.264 |
||
|
Field of View |
Horizontal: 134° |
||
|
Vertical: 97° |
|||
|
Diagnal: 180° |
|||
|
Pre-Motion Recording |
Support |
||
|
Audio |
Two-way audio, Noise reduction, Echo Suppression |
||
|
Quick Replies |
Support |
||
|
Power |
Hardwired |
12-24VAC 50/60Hz, DC 24V |
|
|
PoE |
x |
IEEE 802.3af, 48V Active; |
|
|
Interfaces |
Power |
Power port |
|
|
System |
Reset button |
||
|
Ethernet |
One 10M/100MbpsRJ45 |
||
|
Storage |
Micro SD card slot (Max. 256GB), Reolink NVR |
||
|
Audio |
Built-in 2 Microphones & Speaker |
||
|
WiFi |
Wireless Standard |
IEEE 802.11a/b/g/n |
x |
|
Operating Frequency |
2.4GHz/5GHz |
x |
|
|
Wireless Security |
WPA-PSK/WPA2-PSK |
x |
|
|
Software |
Frame Rate |
Mainstream: 2fps – 20fps (default: 20fps) |
|
|
Substream: 4fps – 15fps (default: 10fps) |
|||
|
Code Rate |
Mainstream: 1024Kbps – 6144Kbps (default: 4096Kbps) |
||
|
Substream: 64Kbps – 512Kbps (default: 256Kbps) |
|||
|
Browsers Supported |
Edge, Chrome, Firefox, Safari |
||
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
|
Smart Alarm |
Motion detection/Person detection/Visitor detection |
||
|
Recording Modes |
Motion recording (default)/scheduled recording |
||
|
Protocols & Standards |
HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
||
|
Work with |
Google Assistant |
||
|
Rich Notification |
Support |
No |
|
|
Working Environment |
Temperature |
Operating temperature: -10°C~+55°C(14°F~131°F) |
|
|
Humidity |
Operating humidity: 10% ~ 90% |
||
|
Waterproof |
Support |
||
|
Size & Weight |
Dimension |
133mm(H)x48mm(W)x23mm(T) |
|
|
Weight |
96g |
||
|
Warranty |
Limited Warranty |
2-year Limited warranty |
|
|
Notice |
Version Differences |
Important Notice about Reolink Doorbell and Chime, please scroll down to the bottom of the details page to learn more. |
|

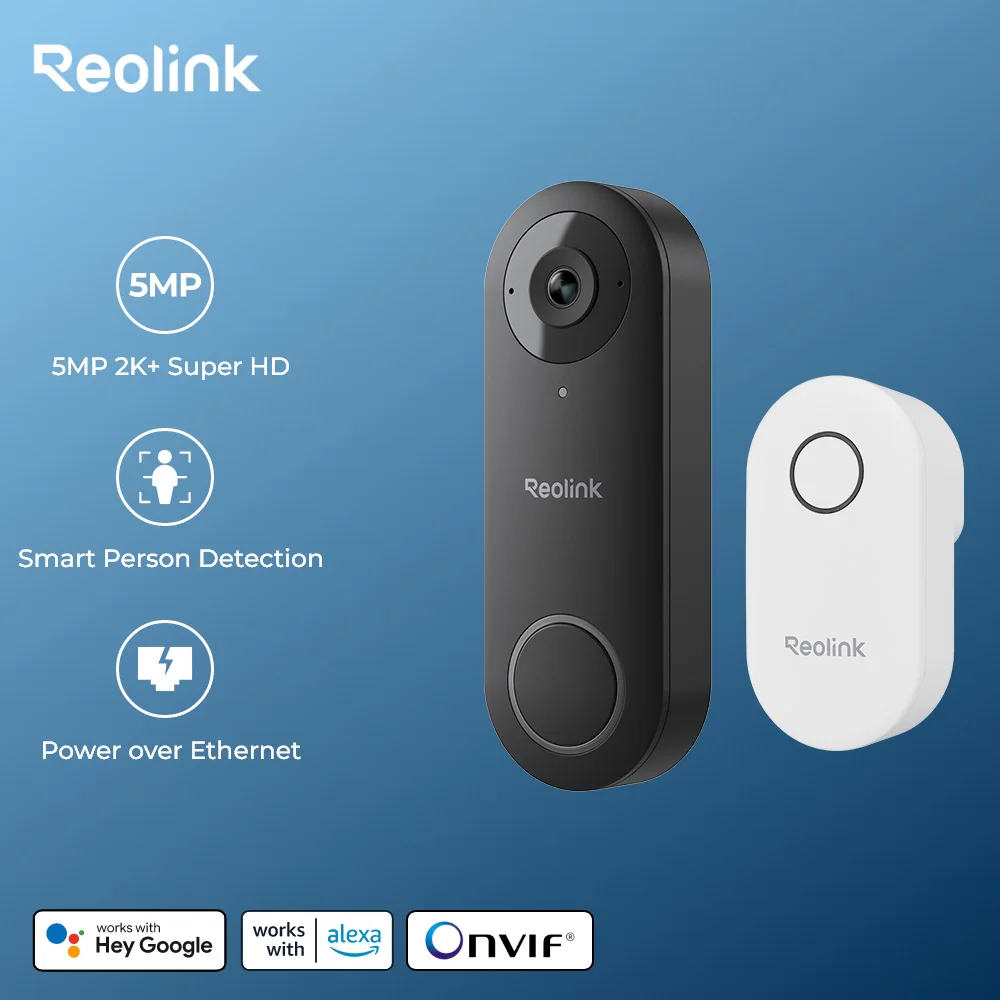

Reolink 2K+ Video Doorbell Smart Outdoor Home Video Intercom with Chime
2K+ Incredible Clarity & 180° wide view
2K+ (5MP) resolution 180 °FOV means much more information and a wider range. Individuals will be easier to see with more detail.
Person Detection & Custom Motion Zone
The doorbell can alert you only when a person is detected, ignoring trivial non-human passers-by. You can also set a motion zone to black out areas prone to unnecessary alarms.
Keep Watch Through Nights
Its infrared LED enables high-quality night recording videos. Knowing who's there even in the dark.
2-way Audio, Quickly, Instantly, Communicatively
Reolink Video Doorbell has built-in mics and a speaker. Take your time greeting the visitor before hurrying to the door, deter the unwanted visitors with no delay, or live talk with the visiting friends when you're not at home.

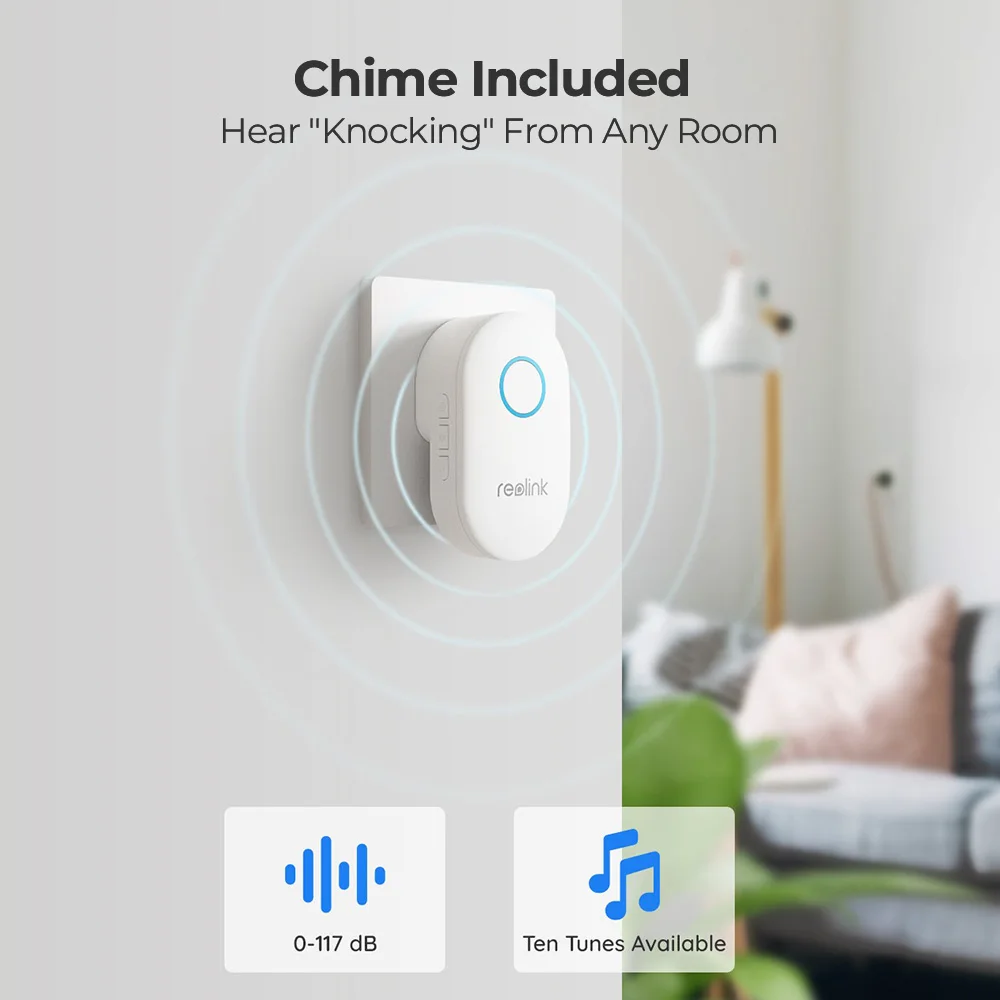

Video Doorbell with chime
Just plug it into any electrical socket in any room and be confidently alerted when visitors knock.
*Please note that Chime is divided into four plug specifications: US/UK/EU/AU. Please choose the option that meets your needs according to the warehouse configuration instructions at the top of the page.
Flexible Storage Options
You can save your recordings locally to a Micro SD card (up to 256GB) or to a Reolink NVR.
*The regular packaging list does not include SD card. If necessary, please choose the option with SD card to purchase
Voice Control, Free your hands
Compatible with Google Assistant, Alexa Show for voice control and real-time monitoring.
WIFI – Video doorbell, Easy to use
PoE – Reliable Connection & Easy Installation
Rely on It, Rain or Shine
With its waterproof design, the video doorbell is suitable for harsh weather conditions and performs well regardless of rain or shine.
What's in the box -WiFi Doorbell
What's in the box -PoE Doorbell
Important Notice about Reolink Doorbell and Chime
Reolink Chime is available in two versions (V1 and V2), each with distinct functionalities. Please note the following crucial points regarding compatibility between Reolink Doorbells and Chimes:
1. Version Compatibility:
Video Doorbell PoE/WiFi (plug-in): The V1 doorbell is compatible only with the V1 Chime, whereas V2 and V3 Doorbells are compatible with V2 Chime. These combinations are not interchangeable.
Reolink Video Doorbell (Battery) is compatible only with the V2 Chime.
2. Doorbell Connection Restriction:
V1 Doorbells support connection to a single Chime, whereas V2 and V3 models and Doorbell Battery can pair with multiple Chimes, up to a maximum of five.
3. Chime Connection Restriction:
Each Chime can only be paired with one doorbell at a time, meaning multiple doorbells cannot share the same chime.
4. Exclusive Compatibility:
Reolink Chimes can only be used with Reolink Video Doorbell cameras, and vice versa. Reolink Video Doorbell (Battery) can also use other wired chimes: Reolink Doorbell Battery Compatible Wired Chime Types
5. Pre-Paired Sets:
Doorbells that come with a Chime are pre-paired at the factory. If you purchase a Reolink Chime separately, you will need to perform the pairing process yourself by following the instructions provided. Reolink Video Doorbell (Battery) does not come with a Reolink Chime, which needs to be purchased separately.
2. How to Identify Your Reolink Chime Version
To identify the version of your Chime, you can look at the Hardware on the Chime. As shown in the photo below, this Chime is V2. If it is not written, it is V1. There are 3 buttons on the side of the Reolink chime. Each of them is designed to realize different functions. Below we will explain how these buttons are used in detail.
